Portable All In One Vet Endoscope System
Portable All-In-One Vet Endoscope System
With Slim diameter and 4-way angulation, UC series veterinary endoscopes are ideal for companion animal bonchoscopy, rhinoscopy, oesophagus, foreign body, gastroscopy, cystoscopy, vaginoscopy, etc.

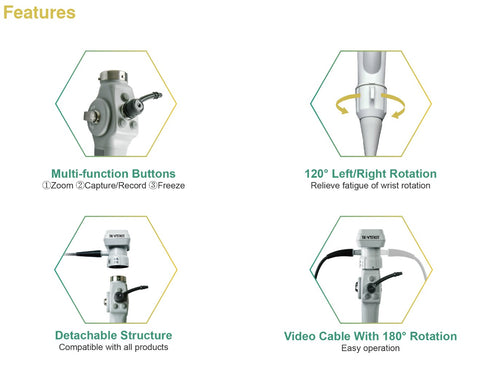

Product Information
CMOS+LED Technology
Non-fiber design makes it durable and easy for maintenance.
Specification
Product Details:

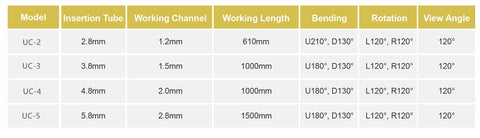

| Specification of Veterinary Endoscope | |||||
| Operation Part | Model | UC-2 | UC-3 | UC-4 | UC-5 |
| Type | Flexible | ||||
| Image Sensor | CMOS (Complementary Metal Oxide Semiconductor),Chip-on-tip | ||||
| System Resolution | 9 line pairs/mm | 1280×720 | 1280×720 | ||
| View Angle | 120° | ||||
| Direction of View | 0° | ||||
| View Depth | 3-100mm | ||||
| Outer Diameter | Ø 2.8mm | Ø 3.8mm | Ø 4.8mm | Ø 5.8mm | |
| Channel ID | Ø 1.2mm | Ø 1.5mm | Ø 2.0mm | Ø 2.8mm | |
| Bending(up/down) | U210°/D130° | U180°/D130° | U180°/D130° | U180°/D130° | |
| Insertion Rotation | L120°/R120° | L120°/R120° | L120°/R120° | L120°/R120° | |
| Working Length | 610mm | 1000mm | 1000mm | 1500mm | |

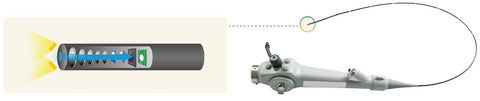

| Enlarge View of Tip | 1. Object lens 2. LED light source 3. Working / Biopsy channel outlet |
||||
| Control Button | Three Buttons(Photograph recording ,freeze, image sizes) | ||||
| Water Proof Grade | Equals to IPX7 and complied to BS ISO 8600-7-2012 | ||||
| Environment | Operating Condition | Temperature:10℃-40℃,atmospheric pressure:700-1060hPa,Humidity:30%-85% | |||
| Storage Condition | Temperature:-47℃-70℃,atmospheric pressure:700-1060hPa,Humidity:10%-95% | ||||
